AWS E6010(GB E4310) is a kind of carbon steel electrode with titania type coating. AC/DC. All-position welding. It has excellent welding performance, excellent operating performance, easy reignition, stable arc and beautiful appearance of weld.For welding low-carbon steel structures, especially suitable for welding on thin plates and cosmetic welding which requires the weld beads to be beautiful and glossy.
Chemical Composition of Deposited Metal(%)，AWS E6010(GB E4310)
| C | Mn | Si | S | P | |
| Standard | -- | -- | -- | ≤0.035 | ≤0.040 |
| Typical | 0.077 | 0.36 | 0.10 | 0.008 | 0.011 |
Mechanical Properties of Deposited Metal，AWS E6010(GB E4310)
|
Yield pointбb(MPa)
|
Tensile Strength бb(MPa) | Elongation δ5(%) |
Impact Value(J) |
|
| -30℃ | ||||
| Standard | ≥330 | ≥420 | ≥22 | ≥27 |
| Typical | 385 | 490 | 33 | 90 |
Sizes, packing& Recommended Current(AC or DC), AWS E6010(GB E4310)
| Size(mm) | ф2.5×350 | ф3.2×350 | ф4.0×400 | ф5.0×400 | |
| Current(A) | OH,VD | 50-80 | 60-100 | 100-140 | 140-180 |
| F,H | 60-90 | 70-110 | 110-150 | 150-200 | |
| Packing | 5kg/box, 20kg/carton | ||||

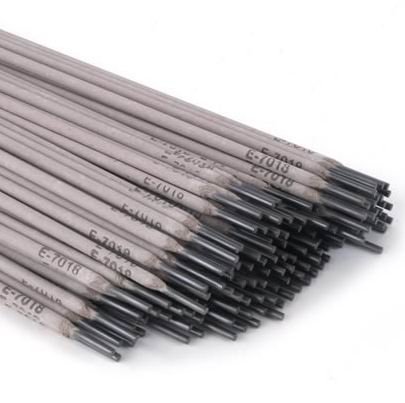

Feature picture
