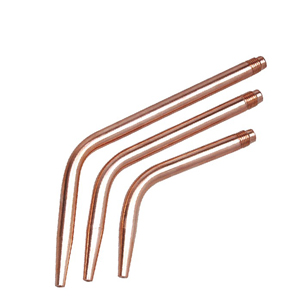

W or W-1 Victor type
Specification
|
MODEL NO. |
APERTUE (mm) |
MATERIAL THICKNESS (〃) |
OXYGEN PRESSURE (PSIG) |
ACETYLENE PRESSURE (PSIG) |
QTY (Root) |
GROSS WEIGHT (Kg) |
NET WEIGHT (Kg) |
VOLUME |
| 000# | 0.6 | 1/32〃 | 3/5 | 3/5 | 250 | 8.6 | 0.034 | 23×17.5×12.5 |
| 00# | 0.7 | 3/64〃 | 3/5 | 3/5 | 250 | 8.6 | 0.034 | 23×17.5×12.5 |
| 0# | 0.9 | 5/64〃 | 3/5 | 3/5 | 250 | 8.86 | 0.035 | 23×17.5×12.5 |
| 1# | 1.0 | 3/32〃 | 3/5 | 3/5 | 200 | 8.7 | 0.043 | 23×17.5×12.5 |
| 2# | 1.2 | 1/8〃 | 3/5 | 3/5 | 200 | 10.1 | 0.05 | 23×17.5×12.5 |
| 3# | 1.5 | 3/16〃 | 4/7 | 3/6 | 150 | 11.4 | 0.075 | 25×23×12.5 |
| 4# | 1.85 | 1/4〃 | 5/10 | 4/7 | 150 | 9.9 | 0.065 | 25×23×12.5 |
| 5# | 2.3 | 1/2〃 | 6/12 | 5/8 | 100 | 14.85 | 0.147 | 25×23×12.5 |
| 6# | 2.7 | 3/4〃 | 7/14 | 6/9 | 100 | 17.184 | 0.17 | 30×23×12.5 |
| 7# | 3.25 | 1-1/4〃 | 8/16 | 8/10 | 50 | 9.69 | 0.19 | 30×23×12.5 |
| 8# | 3.45 | 2〃 | 10/19 | 9/12 | 50 | 10.3 | 0.202 | 32.5×16×12.5 |
