Key Features
● 50℃-500℃ heating by far-infrared radiant panel.
● 50℃-500℃ inner-liner of stainless steel material.
● Automatic temperature control.
● Apply for welding rods of many specifications.
Specification

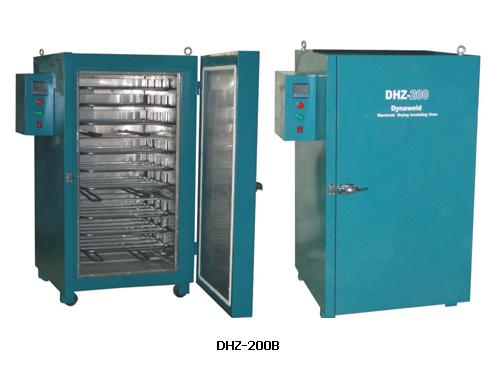

| Item | DHZ-200B | DHZ-400B | ||
| Input voltage | AC380V/415V | |||
| Rated power(KW) | 6KW | 12KW | ||
| Max. temperatrue(℃) | 500℃ | |||
| Layer Number of drawer |
9 |
18 |
||
| Electrode capacity(kg) | 200kg | 400kg | ||
| Electrode length(mm) | 450mm | |||
| Internal diamension(L*W*H) (mm) | 505*505*1035 | 505*505*1035 | ||
| External diamension of equipment(L*W*H) (mm) | 800*850*1350 | 800*1510*1350 | ||
| Net Weight (kg) | 240kg | 440kg | ||
