Key Features
● 50℃-300℃ heating by electric heating tube.
● 50℃-300℃ inner-liner of zinc plated material.
● Automatic temperature control.
● Apply for welding rods of many specifications.
Specification

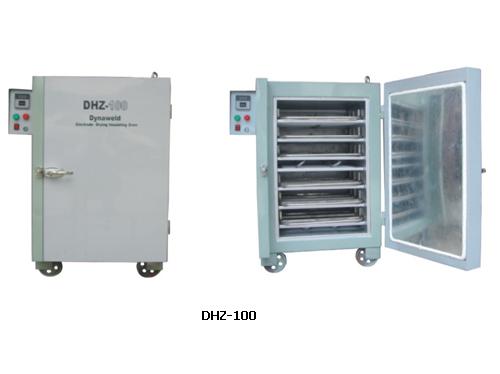

| Item | DHZ-100 | DHZ-200 | DHZ-300 | DHZ-500 |
| Input voltage | AC220V /380V | AC380V/415V | AC380V/415V | AC380V/415V |
| Rated power(KW) | 4.8KW | 6.0KW | 9.0KW | 14.4KW |
| Max. temperatrue(℃) | 300℃ | |||
| Layer Number of drawer | 5 | 9 | 18 | 20 |
| Electrode capacity(kg) | 100kg | 200kg | 300kg | 500kg |
| Electrode length(mm) | 450mm | |||
| Internal diamension(L*W*H) (mm) | 460*500*5 | 500*530*1030 | 430*530*1030mm(2 cavity) | 540*595**595(4 cavity) |
| External diamension of equipment(L*W*H) (mm) | 770*780*1060 | 885*780*1350 | 1385*780*1350mm | 1600*780*1718 |
| Net Weight (kg) | 130kg | 179.5kg | 265kg | 379.5 kg |
There are currently no optional accessories for this item.
