Key Features
● Far-infrared radiation heating is adopted.
● Digital display of temperature and time.
● Stainless steel structure is adopted by both inner cavity and decked-drawers to maintain temperature.
● Automatic temperature controlling.
● With Storage container, regular drying and insulating enhance the turnover rate of the equipment.
● It is the requsite for welding material warehouse and construction sites.

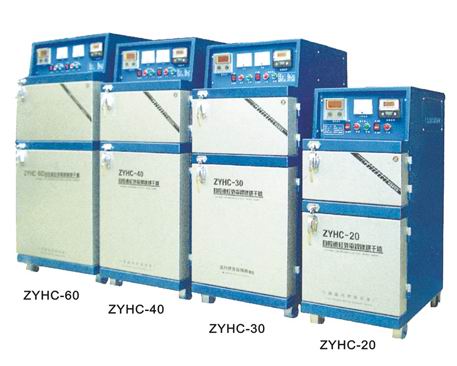

Specification
| Item | ZYHC-30 | ZYHC-60 | ZYHC-100 | ZYHC-150 |
| Input voltage | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| Rated power(KW) | 3.8KW | 4.6KW | 6.4KW | 7.5KW |
| Max. temperatrue(℃) | 500℃ | 500℃ | 500℃ | 500℃ |
| Evenness of temperature(℃) | ±10℃ | ±10℃ | ±10℃ | ±10℃ |
| Electrode capacity(kg) | 30kg | 60kg | 100kg | 150kg |
| Electrode length(mm) | 450mm | 450mm | 450mm | 450mm |
| External diamension of equipment(L*W*H) (cm) | 800*520*1330 | 800*520*1440(108*57*80cm actual carton box) | 950*750*1230 | 1050*750*1450 |
| Weight (kg) | 140kg | 172kg(115kgs actual) | 225kg | 280kg |
The other capacity can be customerized.
There are currently no optional accessories for this item.
