Key Features
● Far-infrared radiation heating is adopted.
● Digital display of temperature and time.
● Stainless steel structure is adopted by both inner cavity and decked-drawers to maintain temperature.
● Automatic temperature controlling.
● It is the requsite for welding material warehouse and construction sites.
Specification

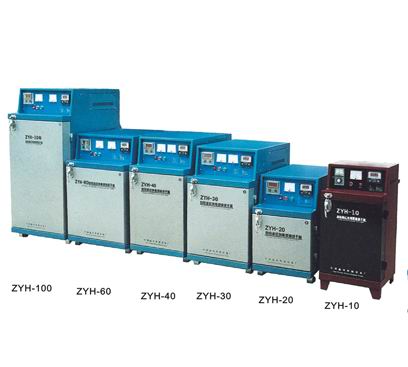

| Item | ZYH-10 | ZYH-20 | ZYH-30 | ZYH-40 | ZYH-60 | ZYH-100 |
| Input voltage | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| Rated power(KW) | 1.6KW | 2.5KW | 3KW | 3KW | 3.6KW | 7.2KW |
| Max. temperatrue(℃) | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ |
| Evenness of temperature(℃) | ±10℃ | ±10℃ | ±10℃ | ±10℃ | ±10℃ | ±10℃ |
| Electrode capacity(kg) | 10kg | 20kg | 30kg | 40kg | 60kg | 100kg |
| Electrode length(mm) | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm |
| Weight (kg) | 54kg | 78kg | 108kg | 115kg | 126kg | 165kg |
The other capacity models can be customerized.
