Key Features

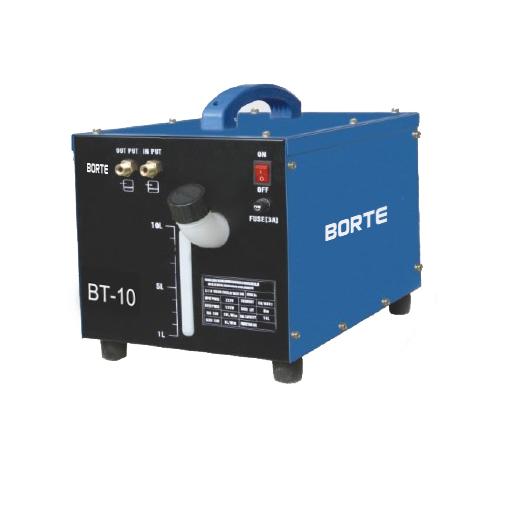

● The water cooler is suitable for most welding applications upto 500A for mig welding and 350A for tig welding, and resistance welding upto 45kva ,and the plasma cutting machine.
● Light weight, small size, convenient to operate.
● Water storage tank is integral formed with high-temperature materials, which can avoid leaking.
● Adopting the copper valve pressure water pump to avoid the water scale after a long time use.
● Can learn the water level by checking the transparent water level windows.
● Water-feeding is convenient.
● Good cooling performance.
● Euro Quick Connector is optional.
● The other capacity 8L, 12L, 15L are customerized.
Specification
| Model | BT-10 |
| Input voltage | AC 220V |
| Rated Power | 115W |
| Rated water flow | 3L/min |
| Rated water capacity | 10L |
| Rated lift | 30meter |
| Dimension(mm) | 565x325x385 |
| Weight | 20kg |
Packing List
| No. | Name | Model | Quantity |
| 1 | Water tank | BT-10 | 1 |
| 2 | Water Pipe | Φ8（5m） | 1 |
| 3 | Fuse | 5A | 2 |
| 4 | Hoop | Φ10-16 | 2 |
| 5 | Operation Instruction | BT series | 1 |
There are currently no optional accessories for this item.
