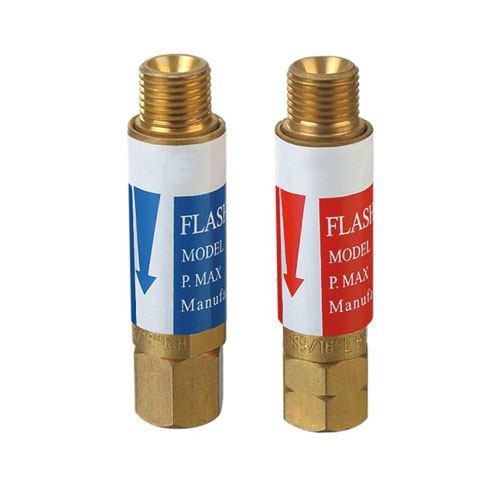

Key Features
• Filter protect the flashback arrestor from dirty particles.
• Non-return valve.
• A flashback in the opposite direction to the flow is stopped and extinguish here.
• Max flow:Oxygen:7000Lt./H Acetylene:2600Lt./H.
Specification
| Model | Gas | For |
Max.Flow Lt/H |
Max.Inlet Pressure(bar) |
Inlet | Outlet |
| 188-R | OXYGEN |
Torch |
7000 | 10 | 9/16"*18R.H. | 9/16"*18R.H. |
| 188-L | FUEL GAS | 2600 | 1.5 | 9/16"*18L.H. | 9/16"*18L.H. | |
| 188-RGB | OXYGEN | 7000 | 10 | BSP 3/8"R.H. | BSP 3/8"R.H. | |
| 188-LGB | FUEL GAS | 2600 | 1.5 | BSP 3/8"L.H. | BSP 3/8"L.H. | |
| 188-AR | OXYGEN | 7000 | 10 | 5/8"*18R.H. | 5/8"*18R.H. | |
| 188-AL | FUEL GAS | 2600 | 1.5 | 5/8"*18L.H. | 5/8"*18L.H. | |
| 188-RA | OXYGEN | 7000 | 10 | BSP1/4"R.H. | BSP1/4"R.H. | |
| 188-LA | FUEL GAS | 2600 | 1.5 | BSP1/4"L.H. | BSP1/4"L.H. |
There are currently no optional accessories for this item.
