Description

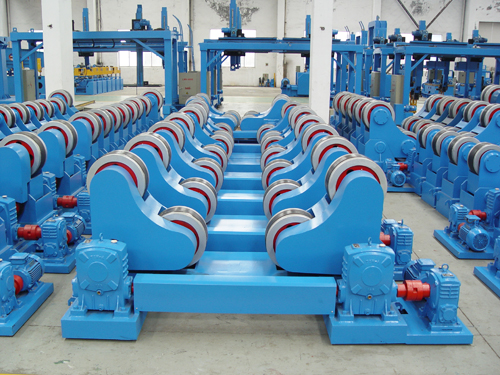

Self Aligning Rotators(SAR series) automatically adjust the Roller Housings to accept any job diameters These type of machines are generally used to cope with the increased production demands. The roller housings of this type of machine are hinged to the beds and open up automatically when a larger diameter job is introduced. In this type of rotators, each hinged Roller Bracket Assembly has two sets of Roller Assemblies resulting in doubling the supporting points to the shell. Thus this type of Rotators is ideal for jobs with more imbalanced loads and also for protecting thin walled shells.
Key Features
• Both the rollers automatically get adjusted for all job diameters.
• Accepts complete range of job diameters in one setting.
• Centre axis of job remain stable for all job diameters.
• Wide range of Job diameters and Load capacities.
• Most suitable for 'thin walled' shells of large diameters.
• 'Four roller' contacts gives superior 'slip free' traction for thin walled vessels
• Better acceptability to ovality of vessels compared to other models.
• Proven reliability and higher productivity.
• Most accepted design for very busy fabrication shops.
• Ideal design for using in conjunction with Column & Boom.

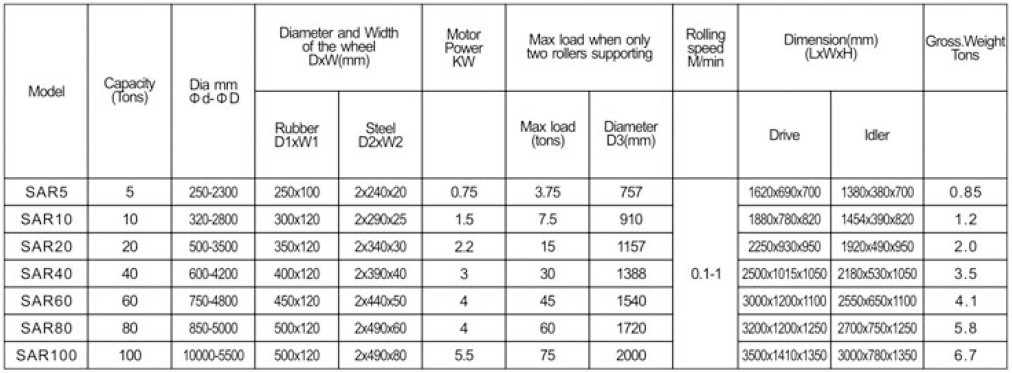

Specification
