Definition
● Inside Clamping Eelectric(ICE)
● Inside Clamping Pneumatic(ICP) ,Click Here to check the prices of the ICP series.
Main Features
● All pipe end cold beveling machines are available with electrical or pneumatic drive. And the range of the inside diameter from 16mm to 850mm is available.
● Cold Beveling improves safety.
● Fast, Precision, On-site Beveling.
● Light weight and compact design
● Easy set-up & Operation
● Electric or Pneumatic , and the two motors can be switched.
● Electric Drive(AC 220V,50/60HZ,0.8-1.5Kw).
● Advantage of the electric driven machine: convenient to use and more powerful than pneumatic type
● Application: Oil & Gas, Power Plant, Boiler, Chemical Plant, Nuclear Power, Process Plant & Fabrication, Ship Building & Repair.
● CE certificate
Specification
●Driven Type: Electric Driven
●Voltage&Frequency: AC220V 50-60HZ
●Rated Power: 0.8-1.5KW
| Electric drive |
Pneumatic Drive |
Working range (I.D mm) |
Wall thickness (mm) |
Dimension (mm) |
Net weight (kg) |
Gross weight (kg) |
| ICE-28T | ICP-28T | 16-28 | ≤10 | 480x350x130 | 10 | 16 |
| ICE-80T | ICP-80T | 28-76 | ≤15 | 480x350x130 | 10.5 | 17 |
| ICE-150B | ICP-150B | 65-159 | ≤20 | 670x300x200 | 23 | 30 |
| ICE-250B | ICP-250B | 80-240 | ≤20 | 670x350x230 | 31 | 46 |
| ICE-351 | ICP-351 | 150-330 | ≤20 | 750x440x350 | 49 | 71 |
| ICE-630 | ICP-630 | 300-600 | ≤20 | 900x680x420 | 89 | 135 |
| ICE-250-II | ICP-250-II | 80-240 | ≤75 | 670x350x230 | 38 | 62 |
| ICE-351-II | ICP-351-II | 150-330 | ≤75 | 830x560x320 | 54 | 76 |
| ICE-630-II | ICP-630-II | 300-600 | ≤75 | 950x750x420 | 74 | 120 |
| ICE-850-II | ICP-850-II | 500-850 | ≤75 | 1250x1000x950 | 266 | 310 |
The B type machines: Tool feeding by an ratchet handle, easy operation and labour-saving.
The II type machines: Auomatic tool feeding system.Specially used for bevelling heavily thickness pipes upto 75mm.
3D Demonstration( B type) 3D Demonstration( II type)

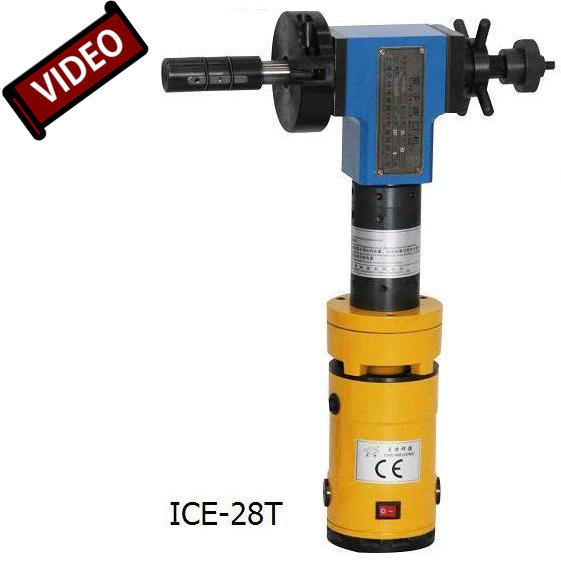

Operations of all kinds of bevelling machines ICE-28T/80T
ICE-150B/250B ICE-250-II/351-II/630-II/850-II

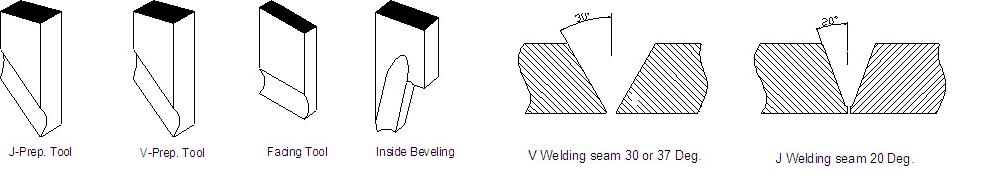

Beveling Tools Beveling type
Packing List ( click the following models to see the details )

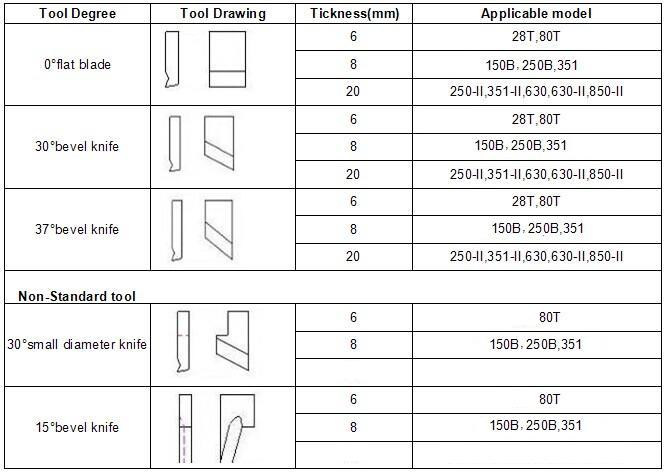

Guidelines for Selecting Tool kits:
