Description
● Capacitor Discharge Studs are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
● Capacitor Discharge Studs are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.
● Standard material for CD Studs are: Low Carbon Copper Flashed Steel, Stainless Steel, Aluminum Alloy, and Brass.
● Other grades, i.e. AISI 316 (A4), AISI 310 are available on request

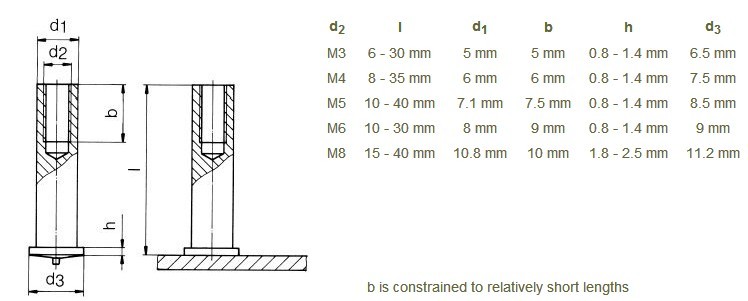

● The stud flange is designed according to EN ISO 13918.
● Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)
There are currently no optional accessories for this item.
