Description
● Capacitor Discharge Studs are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
● Capacitor Discharge Studs are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.
● Standard material for CD Studs are: Low Carbon Copper Flashed Steel, Stainless Steel, Aluminum Alloy, and Brass.
● Other grades, i.e. AISI 316 (A4), AISI 310 are available on request

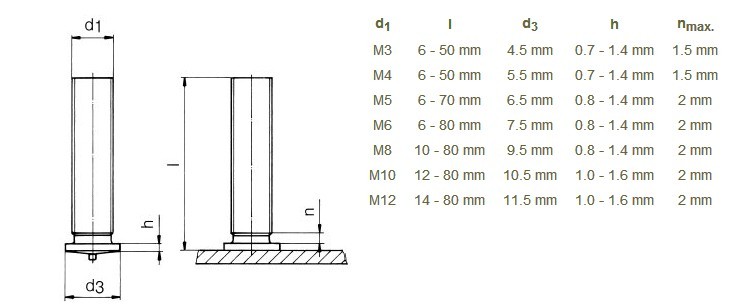

● The stud flange is designed according to EN ISO 13918.
● Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)
| Material: Aluminum, Copper Plated Steel, Stainless Steel | |||||
| M3 | M4 | M5 | M6 | M8 | M10 |
| M3×6mm | M4×6 mm | M5×6 mm | M6×8 mm | M8×10 mm | M10×15 mm |
| M3×8 mm | M4×8 mm | M5×8 mm | M6×10 mm | M8×12 mm | M10×20 mm |
| M3×10 mm | M4×10 mm | M5×10 mm | M6×12 mm | M8×15 mm | M10×25 mm |
| M3×12 mm | M4×12 mm | M5×12 mm | M6×15 mm | M8×18 mm | M10×30 mm |
| M3×15 mm | M4×15 mm | M5×15 mm | M6×16 mm | M8×20 mm | M10×35 mm |
| M3×16 mm | M4×16 mm | M5×16 mm | M6×18 mm | M8×22 mm | M10×40 mm |
| M3×18 mm | M4×18 mm | M5×18 mm | M6×20 mm | M8×25 mm | M10×45 mm |
| M3×20 mm | M4×20 mm | M5×20 mm | M6×22 mm | M8×30 mm | M10×50 mm |
| M3×22 mm | M4×22 mm | M5×22 mm | M6×25 mm | M8×35 mm | |
| M3×25 mm | M4×25 mm | M5×25 mm | M6×30 mm | M8×40 mm | |
| M3×30 mm | M4×30 mm | M5×30 mm | M6×35 mm | M8×45 mm | |
| M3×35 mm | M4×35 mm | M5×35 mm | M6×40 mm | M8×50 mm | |
| M3×40 mm | M4×40 mm | M5×40 mm | M6×45 mm | ||
| M3×45 mm | M4×45 mm | M5×45 mm | M6×50 mm | ||
| M3×50 mm | M4×50 mm | M5×50 mm | |||
