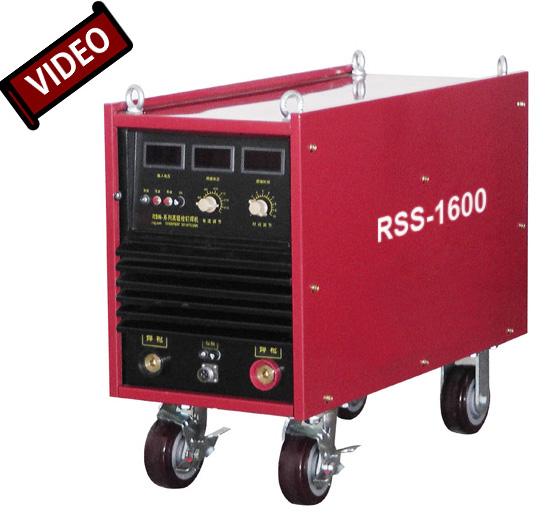

Drawn Arc Stud Welding Machine(RSS-1600,RSS-2000，RSS-2500，RSS-3150)

Drawn Arc Stud Welding Machine(RSS-1600,RSS-2000，RSS-2500，RSS-3150)BT002442

Brand:

USD

$0.00 USD

Note: Different prices will be automatically shown above when you input different level quantity for each relevant specification. Once your quantity lies in “inquiry”, please add it to cart and continue shopping, we will confirm you the price shortly once you submit the order successfully.

Units	Price per Unit (1 Unit = 1 set)
0	Need to log in
1--4	Need to log in
above5	Need to log in

Model:: RSS-1600 RSS-2500 RSS-3150 RSS-4000 RSS-2000

Quantity:

This item has been added to shopping cart.

View Shopping Cart Continue Shopping

Features

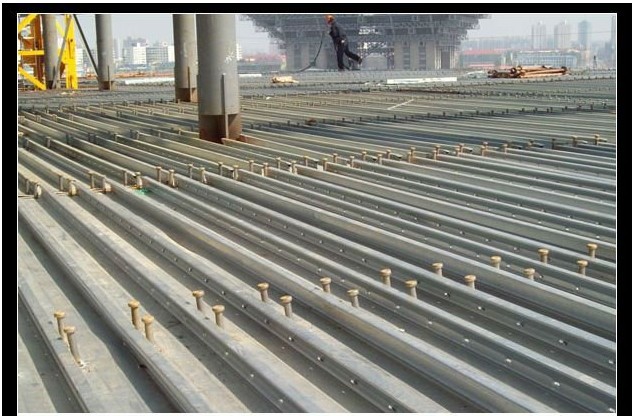

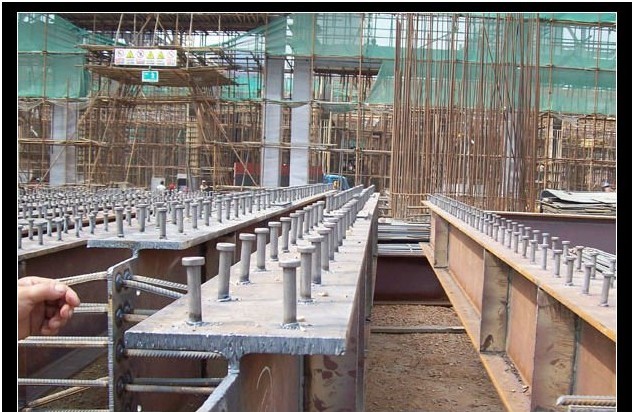

● The Drawn Arc stud welding machine are especially used for large diameter stud welding(M4-M50) and welding under the condition that the surface of the flat steel are coated with a few paint.

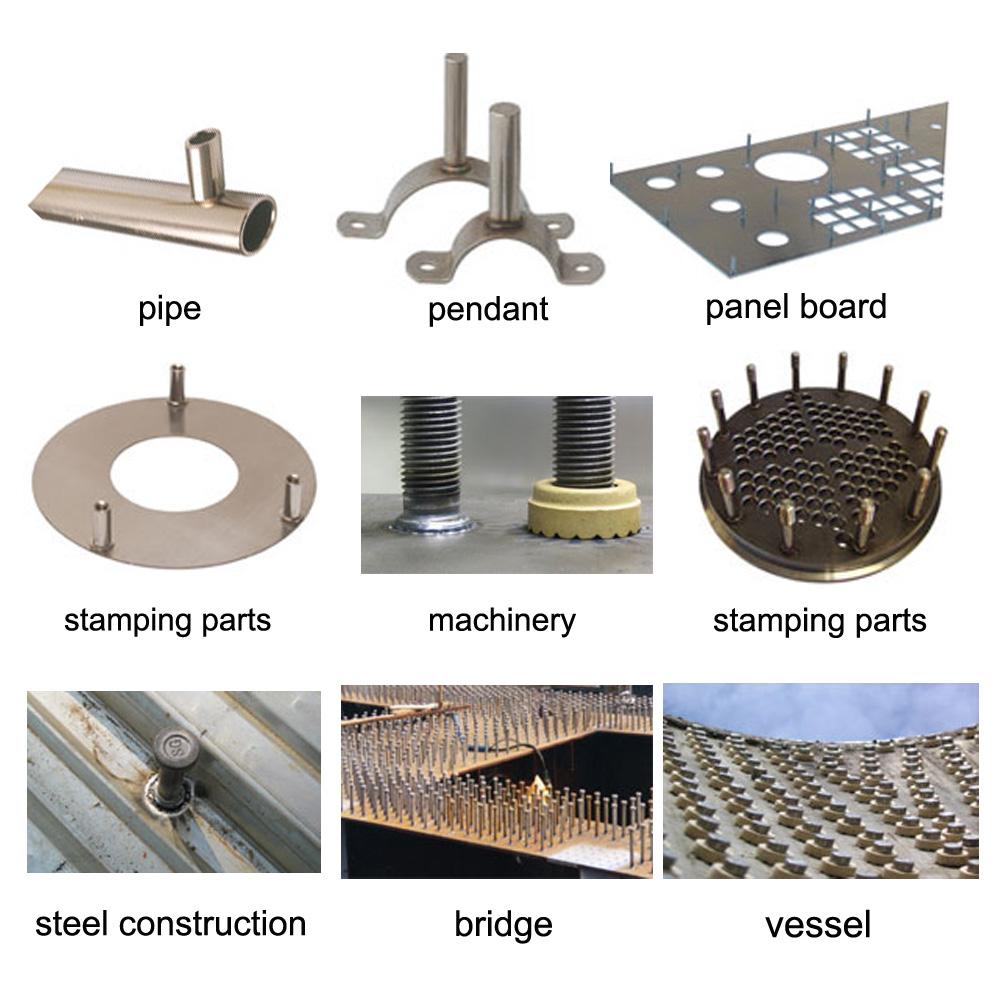

● Can weld on the carbon steel, stainless steel, copper, aluminum, etc.

● Master control system adopts PIC micro-controller itself processor program control, stepless speed regulation welding time
● Second-ranking current adjustable steplessly, visual current display
● Maneuverability is strong, second-ranking high strength of welding, heat affected zone small, mother material not deformation
● Second-ranking overheating protection system overload, equipped with safety and reliability, to protect the equipment.
● Second-ranking welding torch hoisting mechanism test function
● Internal components adopt computer itself diversity design, layout is rational and scientific, and the cooling efficiency high, continuous working longer hours
● Second-ranking choose according to need gas protect or porcelain ring protection welding, ensure welding quality
● With short cycle had root welding function, improve work efficiency.
● Wide voltage adjustment, can itself be automatic compensating voltage fluctuation.

Specification

Model	RSS—1600	RSS—2000	RSS—2500	RSS—3150	RSS—4000
Welding range	Φ4mm—Φ20mm	Φ4mm—Φ22mm	Φ4mm—Φ28mm	Φ4mm—Φ36mm	ф6㎜-ф46㎜
Welding Current	200A—1600A	300A—2000A	300A—2500A	400A—3150A	600A—4000A
Welding time	0.1S—3.0S	0.1S—3.0S	0.1S—3.0S	0.1S—3.0S	0.1S—3.0S
Welding speed	M20 10pc/min	Φ22 10pc/min	Φ28 10pc/min	Φ36 8pc/min	Φ46 8pc/min
Input power	AC 3~380V±10%	AC 3~380V±10%	AC 3~380V±10%	AC 3~380V±10%	AC 3~380V±10%
Input capacity	50KW	60KW	80KW	110KW	140KW
Power switch	100A	125A	160A	225A	250A
Protection level	Ip23	Ip23	Ip23	Ip23	Ip23
Cooling type	Air	Air	Air	Air	Air
Dimension	880mm×460mm×588mm	880mm×460mm×800mm	880mm×460mm×800mm	880mm×460mm×980mm	990mm×418mm×800mm
Weight	100kg	120kg	135kg	160kg	188kg

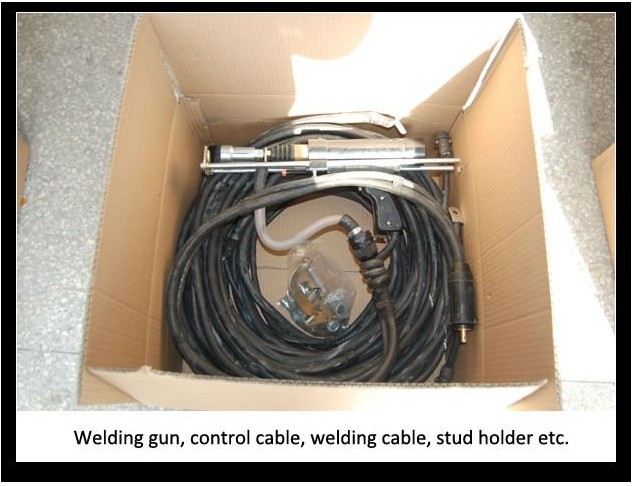

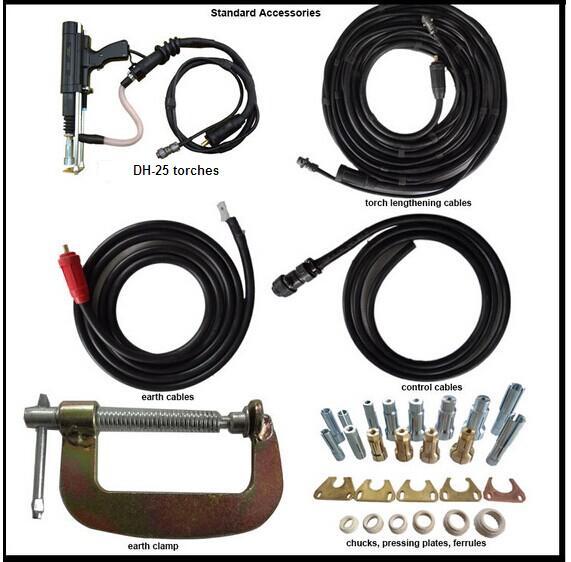

Including Accessories	25meter 95sq Welding Cable 5meter 95sq earth cable Welding Gun(DH-25) 3sets chuck and chuck board (φ10、φ12、φ13、φ16、φ19)	25meter 120sq Welding Cable 5meter 120sq earth cable Welding Gun(DH-25) 3sets chuck and chuck board (φ13、φ16、φ19、φ22、φ24)	25meter 120sq Welding Cable 5meter 120sq earth cable Welding Gun(DH-25) 3sets chuck and chuck board (φ13、φ16、φ19、φ22、φ25)	25meter 120sq Welding Cable 5meter 120sq earth cable Welding Gun(DH-25) 3sets chuck and chuck board (φ13、φ16、φ19、φ22、φ25)	25meter 120sq Welding Cable 5meter 120sq earth cable Welding Gun(DH-25) 3sets chuck and chuck board (φ13、φ16、φ19、φ22、φ25)
